Equipment Photos

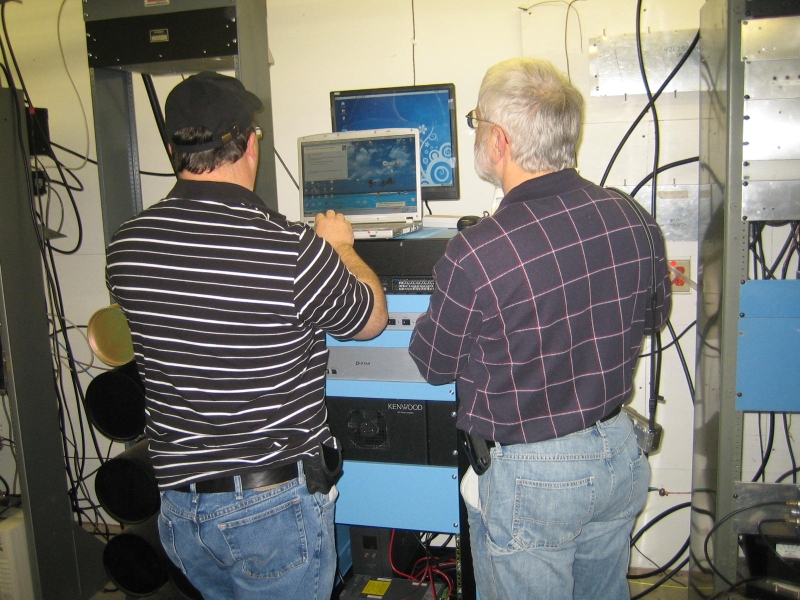

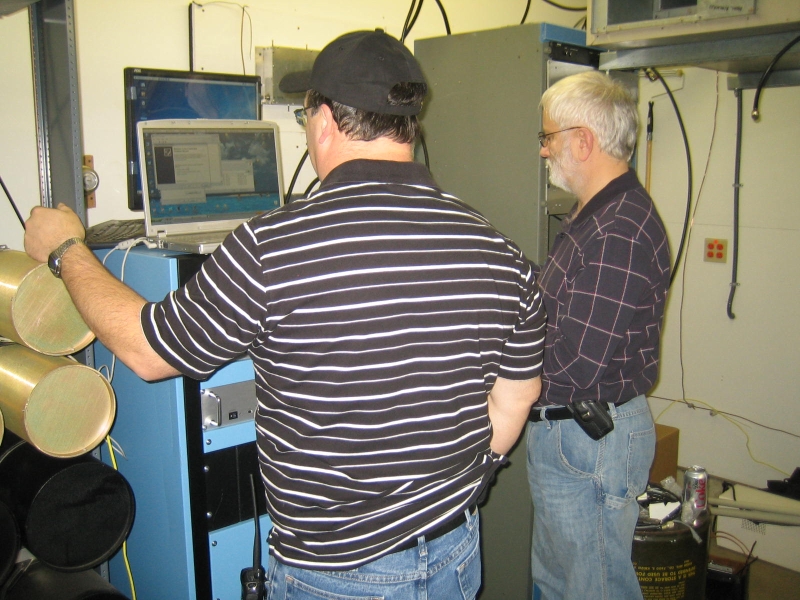

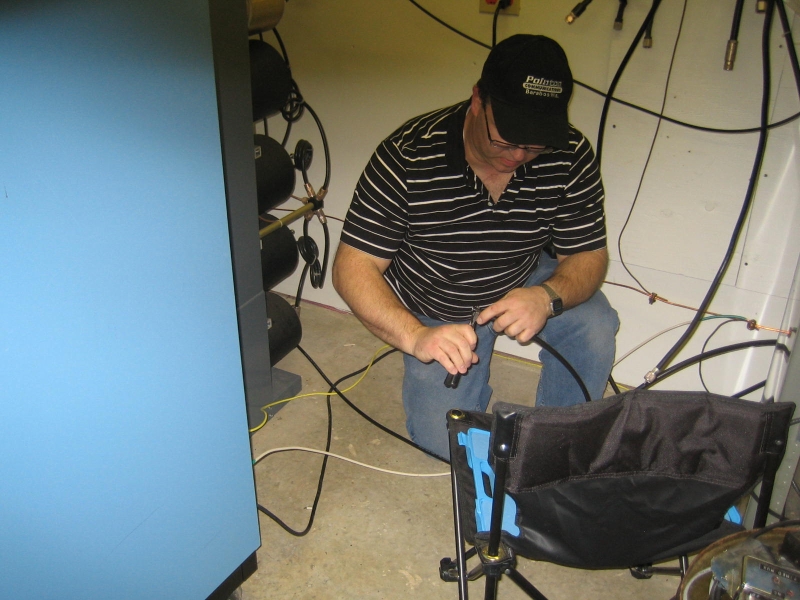

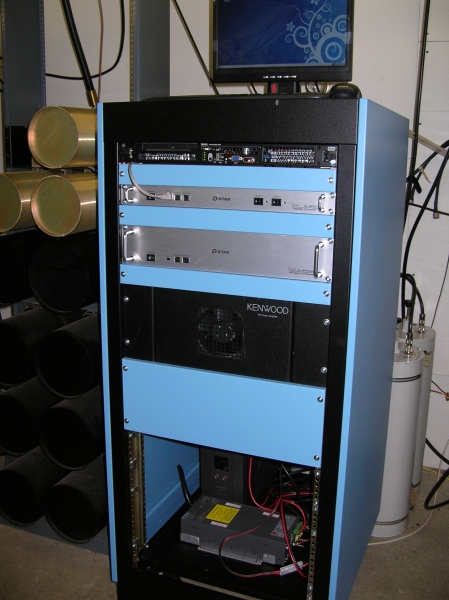

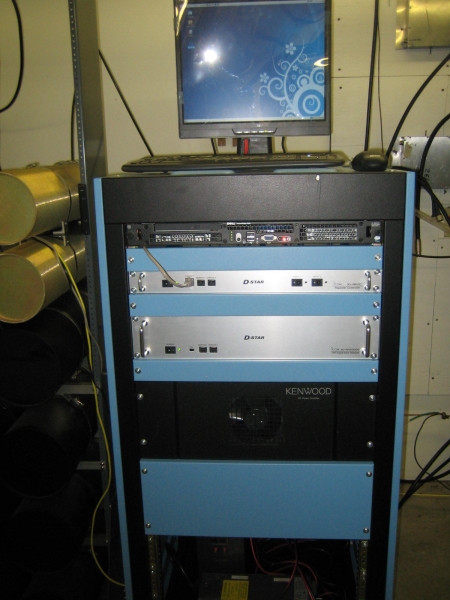

Pictures courtesy of Don, K9JYX and Tom, N9PQJ, who helped with the 'changeover' on 1/31/2010 - Thanks Guys! Steve, N9UDO building new patch cables to connect to the combining system. Steve, N9UDO and Tom, N9PQJ programming the D-Star repeater to it's new frequency. Waddya mean.....new hardware found??!!?? The D-Star System - Dell Power Edge Server, Controller, 2-meter module, 100 watt amplifier, 12 volt 40 amp switching power supply and UPS. I hope the folks at Icom don't mind.....Brad, KB9VMC, had an extra Kenwood 100 watt amplifier for us to use!! D-Star equipment and VHF combining racks. The gold colored 'cans' are for the D-Star repeater. Here's the 147.3150 analog repeater system. 100 watt amplifier, controller and radio. Back to D-Star Back to Home
